MT3010A 10” fully rugged Android tablet

  • Qualcomm® SDA660 Kryo 260 CPU + Octo-Core
  • Warm-swappable battery
  • IP65 waterproof and dustproof
  • Designed for use in extreme temperatures
  • Optional integrated 1D/2D barcode reader
  • Supports NFC functions
  • 13 MP rear camera with LED flash and 8 MP front camera
  • Qualcomm® SDA660 Kryo 260 CPU + Octo-Core
  • Warm-swappable battery
  • IP65 waterproof and dustproof
  • Designed for use in extreme temperatures
  • Optional integrated 1D/2D barcode reader
  • Supports NFC functions
  • 13 MP rear camera with LED flash and 8 MP front camera

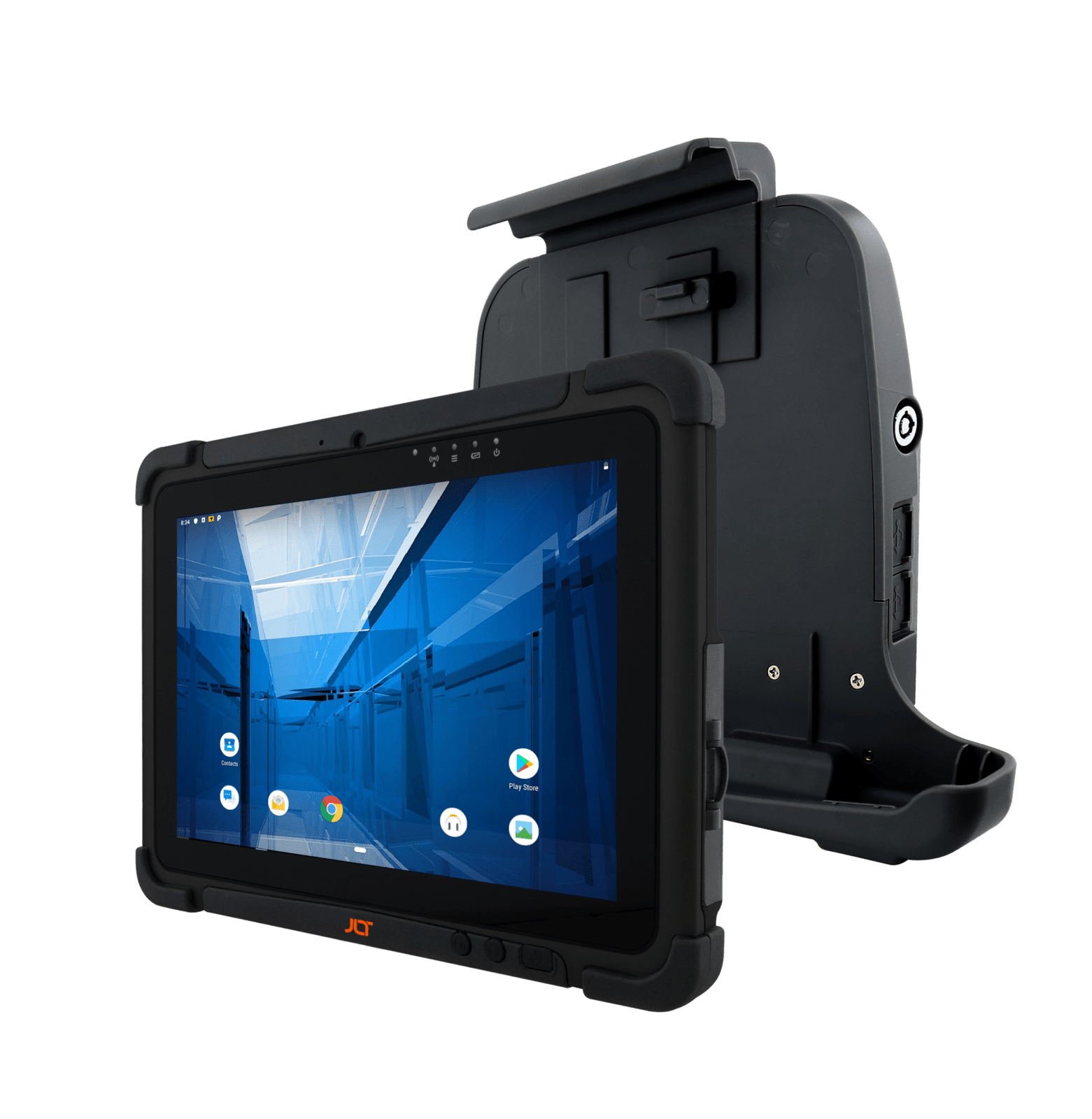

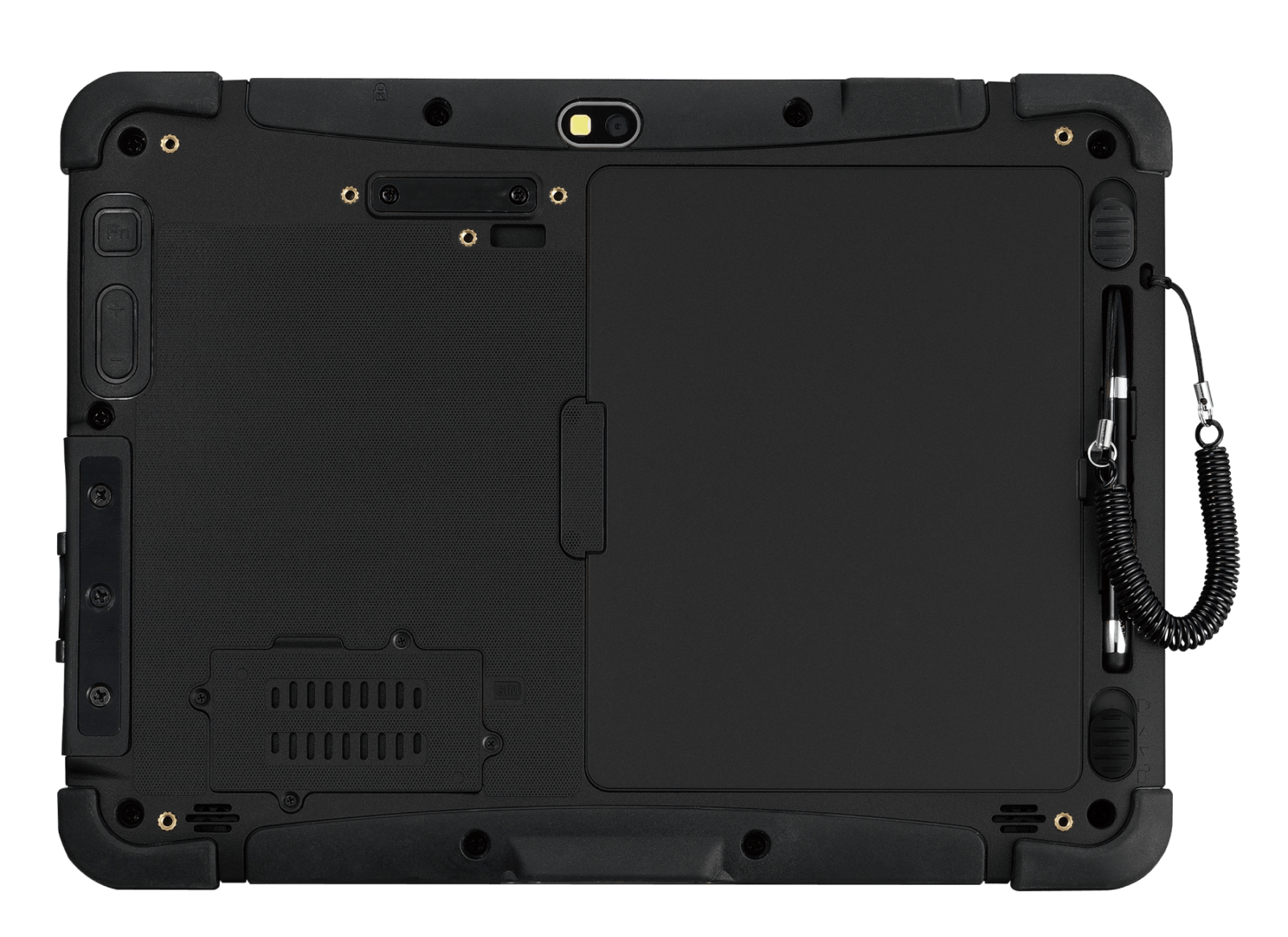

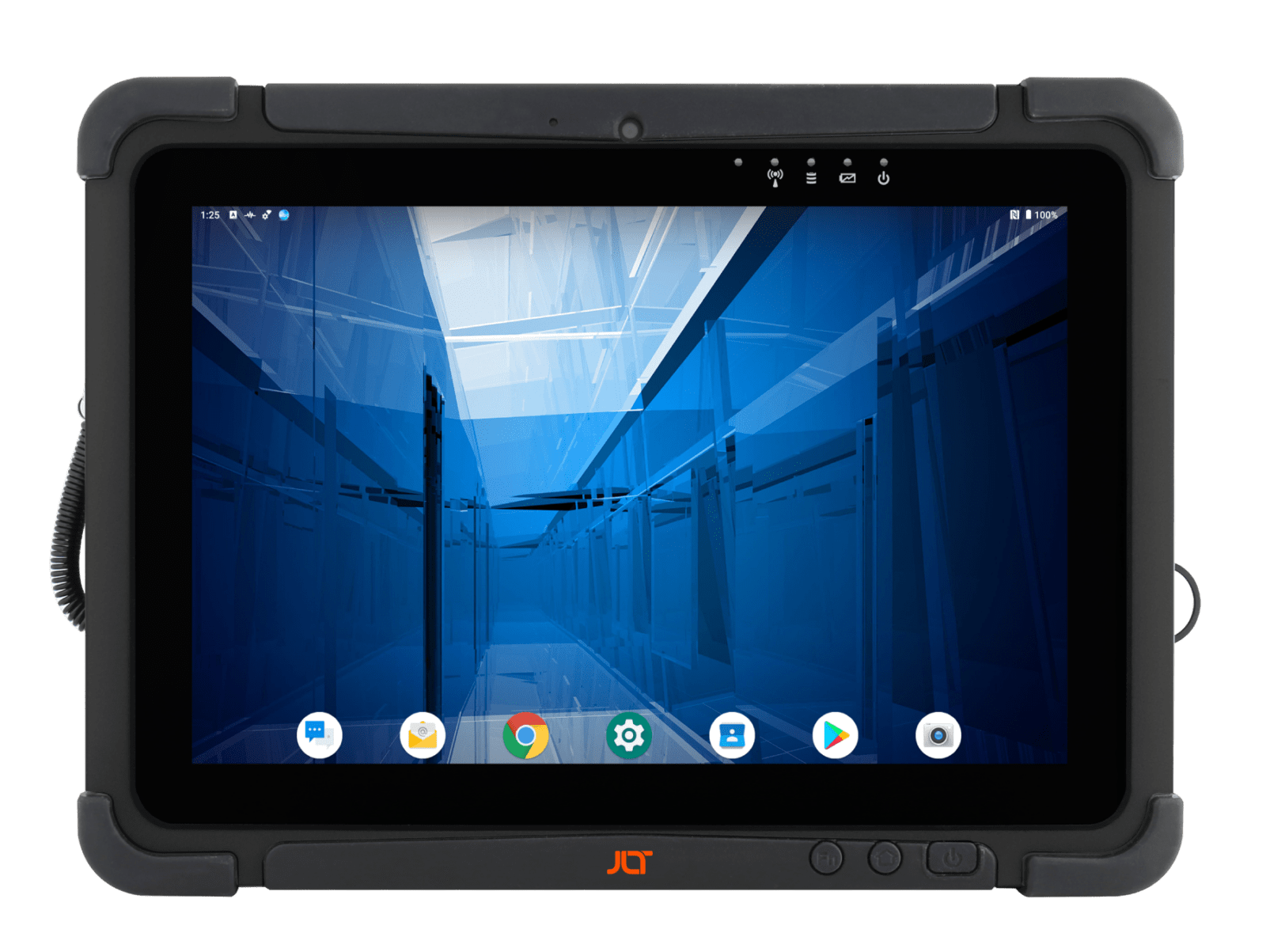

MT3010A™ rugged tablet combines tough construction with a slim form factor and light weight. It runs the Android™ operating system and can handle the applications you are already using on other handheld Android units.
Tired of dealing with the repair costs of consumer-grade tablets? This tablet can withstand a four-foot drop onto concrete. It is dustproof and waterproof to IP65 standard and has an operating temperature range of -10 to +50°C / 14 to +122°F. The 10.1” touchscreen is readable in sunlight, making it ideal for working outdoors or indoors. No more squinting at a small, hard-to-read screen.

For a highly flexible mobile solution, these devices can be easily carried for audits, special orders or inventory tasks.

Product Highlight

Extended functionality

Get more out of your device with the right accessories

Maximized uptime

Total peace of mind with JLT:Care™, the no-questions-asked service agreement from JLT

Perfect for work outside of the vehicle

The slim and compact format makes this tablet the perfect choice for remote work

Product Specifications

Base Unit

Processor:

Qualcomm® Snapdragon™ 660

Memory:

3GB

Display:

10.1” (1920 x 1200) 800 NIT
Capacitive multi-touch screen with optical bonding for sunlight viewability

Storage

Onboard:

mSATA 32GB

Expansion:

SDHC-card (up to 32GB)

RF Options

Radio:

WLAN 802.11 a/b/g/n/ac
Bluetooth v 5.0

WWAN:

4G/LTE (optional)

GPS:

GPS/AGPS

Interfaces

Ports:

1x USB 3.0 Type C OTG
1x USB 2.0 Type A
1x Micro SD slot
1x 19-pin docking connector
1x Audio combo connector (mic in or line out) 1x USB 2.0 Type A
1x Power jack

Audio:

1x Built-in mic
2x 1W Speaker

Camera:

Rear: 13.0 MP auto focus w.
LED flash Front: 8.0 MP

Data Capture:

1D/2D barcode reader (optional)
NFC reader

Keys:

1x Power 1x Home 1x Return
1x Volume keys

LED indicator:

Power, Battery

Security

Lock:

Kensington lock slot

Mobile Device Management:

SOTI Mobicontrol compatible, available upon request

Sensors

Digital compass
G-sensor
Light sensor

Power Supply

Input:

19 VDC

Battery:

Warm swappable 7.9V, typ. 5900 mAh Li-Polymer (2S1P) 8 hours (depending on usage)

Adapter:

100 ~ 240 V / 19VDC 3.42A

Operating Systems

Android 9.0

Physical Characteristics

Dimensions:

271.9mm (w) x 197.3mm (h) x 19.5mm(d)
10.7 inch (w) x 7.8 inch (h) x 0.76 inch (d)

Weight:

1.4 kg / 2.65 lb

Environment

Operating temp.:

AC mode
-20°C to 60°C / -4°F to 140°F

Battery mode:

-10°C to 50°C / 14°F to 122°F

Storage temp.:

-30°C to 70°C / -22°F to 158°F

Humidity:

10% to 90% RH, non-condensing

Salt Fog:

MIL-STD-810G

Dust and water:

IP65

Vibration:

MIL-STD-810G

Shock:

MIL-STD-810G

Drop:

MIL-STD-810G (multiple 4-foot drop to concrete)

Base Unit

Processor

Qualcomm® Snapdragon™ 660

Memory

3GB

Display

10.1” (1920 x 1200) 800 NIT
Capacitive multi-touch screen with optical bonding for sunlight viewability

Interfaces

Ports

1x USB 3.0 Type C OTG
1x USB 2.0 Type A
1x Micro SD slot
1x 19-pin docking connector
1x Audio combo connector (mic in or line out) 1x USB 2.0 Type A
1x Power jack

Audio

1x Built-in mic
2x 1W Speaker

Camera

Rear: 13.0 MP auto focus w.
LED flash Front: 8.0 MP

Data Capture

1D/2D barcode reader (optional)
NFC reader

Keys

1x Power 1x Home 1x Return
1x Volume keys

LED indicator

Power, Battery

Sensors

Digital compass
G-sensor
Light sensor

Storage

Onboard

mSATA 32GB

Expansion

SDHC-card (up to 32GB)

Power Supply

Input

19 VDC

Battery

Warm swappable 7.9V, typ. 5900 mAh Li-Polymer (2S1P) 8 hours (depending on usage)

Adapter

100 ~ 240 V / 19VDC 3.42A

Physical Characteristics

Dimensions

271.9mm (w) x 197.3mm (h) x 19.5mm(d)
10.7 inch (w) x 7.8 inch (h) x 0.76 inch (d)

Weight

1.4 kg / 2.65 lb

RF Options

Radio

WLAN 802.11 a/b/g/n/ac
Bluetooth v 5.0

WWAN

4G/LTE (optional)

GPS

GPS/AGPS

Security

Lock

Kensington lock slot

Mobile Device Management

SOTI Mobicontrol compatible, available upon request

Operating Systems

Android 9.0
