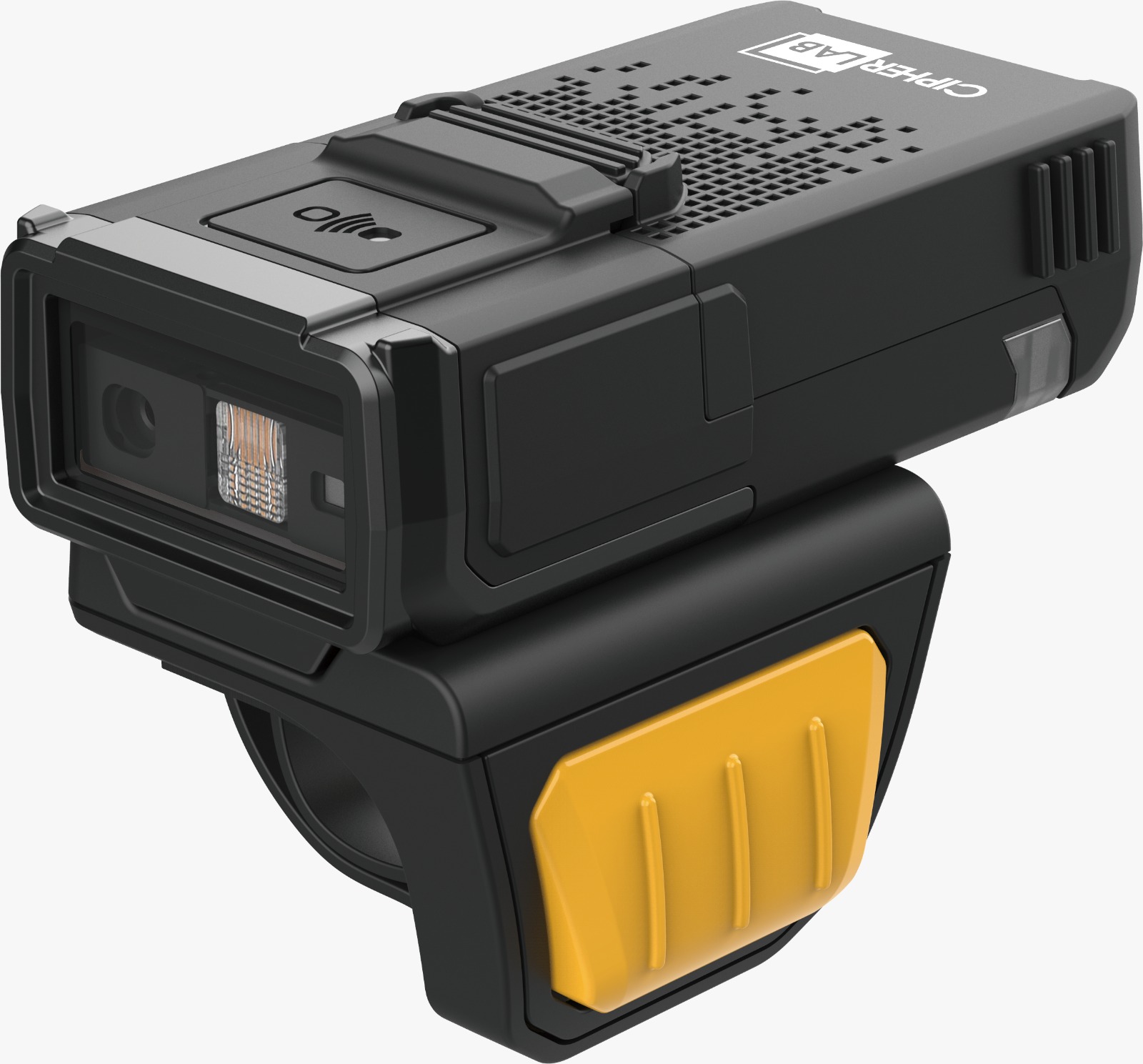

WR30 Wearable from CipherLab

  • Rugged Hands-Free Design: Built for industrial use with IP65 dust and water resistance and drop protection.
  • Fast and Accurate Scanning: Reads 1D/2D barcodes quickly from close range to larger distances.
  • Reliable Wireless Connectivity: Bluetooth 5.3 ensures stable pairing with mobile devices and computers.
  • Flexible Wear Options: Configurable ring, hand, or wrist mount for comfort and hands-free operation.
  • Long-Lasting Battery: Replaceable 600 mAh battery supports full-shift operation with minimal downtime.
  • Rugged Hands-Free Design: Built for industrial use with IP65 dust and water resistance and drop protection.
  • Fast and Accurate Scanning: Reads 1D/2D barcodes quickly from close range to larger distances.
  • Reliable Wireless Connectivity: Bluetooth 5.3 ensures stable pairing with mobile devices and computers.
  • Flexible Wear Options: Configurable ring, hand, or wrist mount for comfort and hands-free operation.
  • Long-Lasting Battery: Replaceable 600 mAh battery supports full-shift operation with minimal downtime.

By eliminating the need to repeatedly pick up and put down a handheld device, this wearable ring scanner significantly boosts productivity across warehousing, manufacturing, and retail operations.

The WR30 wearable ring scanner enhances hands-free productivity in scan-intensive environments with its lightweight, ergonomic design, allowing workers to focus on picking and movement without interruption. Built for durability, it withstands harsh conditions while delivering fast, versatile barcode scanning. Seamless Bluetooth connectivity, NFC pairing, and flexible wearing options ensure all-day comfort, mobility, and reliable performance.

Product Highlight

Hands-free productivity

Lightweight, ergonomic ring design enables efficient picking and movement without handling a device, improving speed and accuracy in scan-intensive workflows.

Rugged, versatile scanning

IP65-rated durability and 1.8 m drop resistance ensure reliability, while fast 1D/2D scanning captures barcodes from close range to long distances.

Seamless, all-day operation

Bluetooth 5.3 connectivity, NFC tap-to-pair, and a replaceable battery deliver reliable performance, comfort, and flexibility across full work shifts.

Product Specifications

Dimension

62.8 x 31.8 x 17.3 mm

Weight

59g (with battery)

Barcode Scanning

1D/2D Imager

Scan Engine

SE4770/SE5500

Working Range/Humidity

Up to 14M

Operating: 10% to 90%, Storage: 5% to 95%

Scanning Feedback/Wireless Connectivity/Pairing

Buzzer/LED/Vibration Indicator

Class 2, Bluetooth v5.3 with Bluetooth Low Energy (BLE)

Tap-to-pair (NFC) / Scan the pairing barcode (Bluetooth)

Battery Capacity/Working Hour*/Interface Supported

600 mAh

8 hours*

USB Type-C

Drop/Tumble/Sealing

1.8m/1000 (0.5m)

IP65

Temperature/Electrostatic Discharge (ESD)

Operating: -20 °C to 50°C , Storage: -30°C to 60°C

±10 kV contact, ±20 kV air

Environment

Operating temp:

-22F to +140F

Storage temp:

-22F to +140F

Humidity:

5–95% RH, non-condensing

Shock & vibration:

MIL-STD-810H

Impact resistance:

IK07

ESD:

±8kV contact / ±12kV air

Ingress protection:

IP65

Dimension

62.8 x 31.8 x 17.3 mm

Scan Engine

SE4770/SE5500

Scanning Feedback/Wireless Connectivity/Pairing

Buzzer/LED/Vibration Indicator

Class 2, Bluetooth v5.3 with Bluetooth Low Energy (BLE)

Tap-to-pair (NFC) / Scan the pairing barcode (Bluetooth)

Weight

59g (with battery)

Battery Capacity/Working Hour*/Interface Supported

600 mAh

8 hours*

USB Type-C

Temperature/Electrostatic Discharge (ESD)

Operating: -20 °C to 50°C , Storage: -30°C to 60°C

±10 kV contact, ±20 kV air

Barcode Scanning

1D/2D Imager

Working Range/Humidity

Up to 14M

Operating: 10% to 90%, Storage: 5% to 95%

Drop/Tumble/Sealing

1.8m/1000 (0.5m)

IP65

Downloads

PDF

JLT - CipherLab & JLT Brochure

Download Data Sheet
