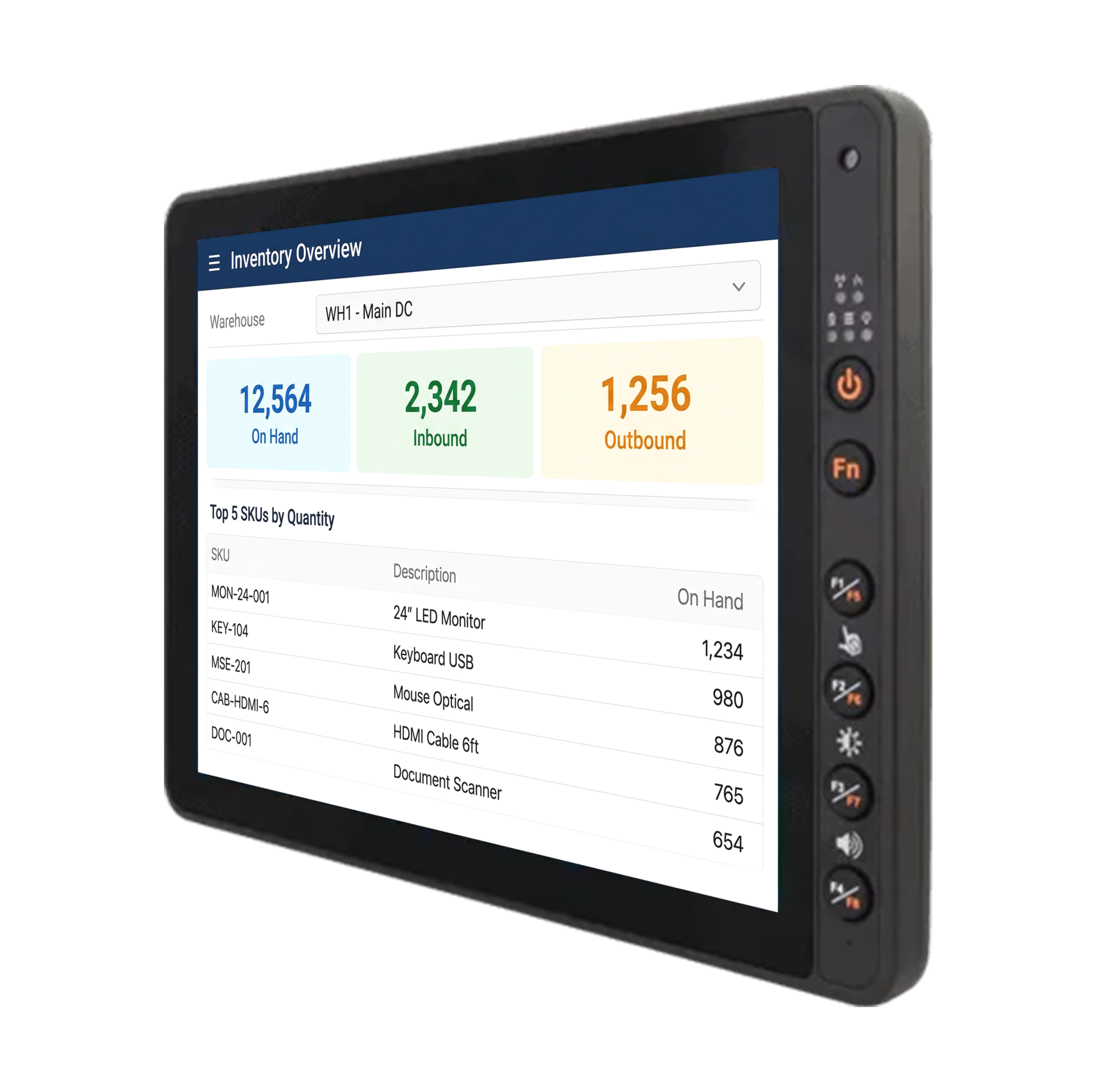

VM 1210A 12” Android vehicle-mount computer

  • ARM Genio 510 processor with 2x Cortex-A78 and 4x Cortex-A55
    cores at 2.0GHz
  • 12.1” XGA (1024 x 768) PCAP multi-touch display, glove/stylus-friendly
  • Rugged IP65-rated design for dust and water resistance
  • Operating temperature: -30°C to +60°C / -22°F to +140°F
  • Wide 10–60V DC power input with ignition control
  • Fanless cooling for silent, reliable operation
  • Replaceable front and rear modules for easy maintenance
  • Compatible with VESA mounting for flexible installation
  • Optional 4G/LTE, GPS/GLONASS, and external antennas
  • Optional 800 nits high-brightness display for sunlight readability
  • ARM Genio 510 processor with 2x Cortex-A78 and 4x Cortex-A55
    cores at 2.0GHz
  • 12.1” XGA (1024 x 768) PCAP multi-touch display, glove/stylus-friendly
  • Rugged IP65-rated design for dust and water resistance
  • Operating temperature: -30°C to +60°C / -22°F to +140°F
  • Wide 10–60V DC power input with ignition control
  • Fanless cooling for silent, reliable operation
  • Replaceable front and rear modules for easy maintenance
  • Compatible with VESA mounting for flexible installation
  • Optional 4G/LTE, GPS/GLONASS, and external antennas
  • Optional 800 nits high-brightness display for sunlight readability

VM 1210A rugged Android computer – ideal for warehouse, logistics, and fleet operations
The VM 1210A delivers high performance and rugged durability for companies running Android-based applications in demanding environments. Perfectly suited for warehouses, distribution centers, fleet management, and forklifts, it ensures smooth and reliable operation under the toughest conditions.

High-performance rugged Android computing
Powered by the ARM Genio 510 processor, the VM 1210A provides strong multitasking performance with its combination of Cortex-A78 and A55 cores. Its intuitive 12.1” PCAP touchscreen and wide range of connectivity options make it easy to use and integrate into your workflows. Built with an IP65-rated enclosure, fanless design, and extreme temperature tolerance, it delivers dependable operation in even the harshest settings

Product Highlight

Rugged reliability

IP65-rated, shock- and vibration tested, and designed for extreme temperature ranges, ensuring maximum uptime in demanding environments.

Seamless integration

Versatile I/O ports, VESA mounting, and support for Android 13 (or Linux options) make it easy to deploy into your operation.

Low total cost of ownership

Fanless design, modular components, and UPS battery provide a cost-eective and resilient solution.

Product Specifications

Base Unit

Processor:

ARM Genio 510 (2x A78 @2.0GHz + 4x A55 @2.0GHz)

Memory:

4GB LPDDR4

Display:

12.1” XGA (1024 x 768) PCAP touchscreen
Brightness: 400 nits (800 nits optional)
View angles: 89° (all directions)
Glove and stylus support

Storage

Onboard:

64GB

RF Options

CONNECTIVITY:

Wi-Fi 6 with internal antenna BT 5.2
Bluetooth – WWAN via Sierra EM7595
Optional 4G/LTE with external antenna
Optional GPS/GLONASS with external antenna

Interfaces

1x USB-C OTG, 1x USB 2.0
2x RS232/422/485 (default RS232)
1x Gigabit LAN
Audio in/out or optional DIDO
1x MicroSD slot
1x dual-nano SIM slot
Optional CANBus

Power Supply

10–60V DC with ignition control
Power consumption: 35W typical
UPS battery for 20 minutes backup

Operating Systems

Android:

13.0

Physical Characteristics

DIMENSIONS: 12 in (W) x 8.86 in (H) x 2.24 in (D)

WEIGHT: 5.51 lbs

Environment

Operating temp:

-22F to +140F

Storage temp:

-22F to +140F

Humidity:

5–95% RH, non-condensing

Shock & vibration:

MIL-STD-810H

Impact resistance:

IK07

ESD:

±8kV contact / ±12kV air

Ingress protection:

IP65

Base Unit

Processor:

ARM Genio 510 (2x A78 @2.0GHz + 4x A55 @2.0GHz)

Memory:

4GB LPDDR4

Display:

12.1” XGA (1024 x 768) PCAP touchscreen
Brightness: 400 nits (800 nits optional)
View angles: 89° (all directions)
Glove and stylus support

Interfaces

1x USB-C OTG, 1x USB 2.0
2x RS232/422/485 (default RS232)
1x Gigabit LAN
Audio in/out or optional DIDO
1x MicroSD slot
1x dual-nano SIM slot
Optional CANBus

Storage

Onboard:

64GB

Power Supply

10–60V DC with ignition control
Power consumption: 35W typical
UPS battery for 20 minutes backup

Physical Characteristics

DIMENSIONS 12 in (W) x 8.86 in (H) x 2.24 in (D)
WEIGHT 5.51 lbs

RF Options

CONNECTIVITY:

Wi-Fi 6 with internal antenna BT 5.2
Bluetooth – WWAN via Sierra EM7595
Optional 4G/LTE with external antenna
Optional GPS/GLONASS with external antenna

Operating Systems

Android:

13.0

Downloads

PDF

JLT - VM1210A Product Sheet

Download Data Sheet
