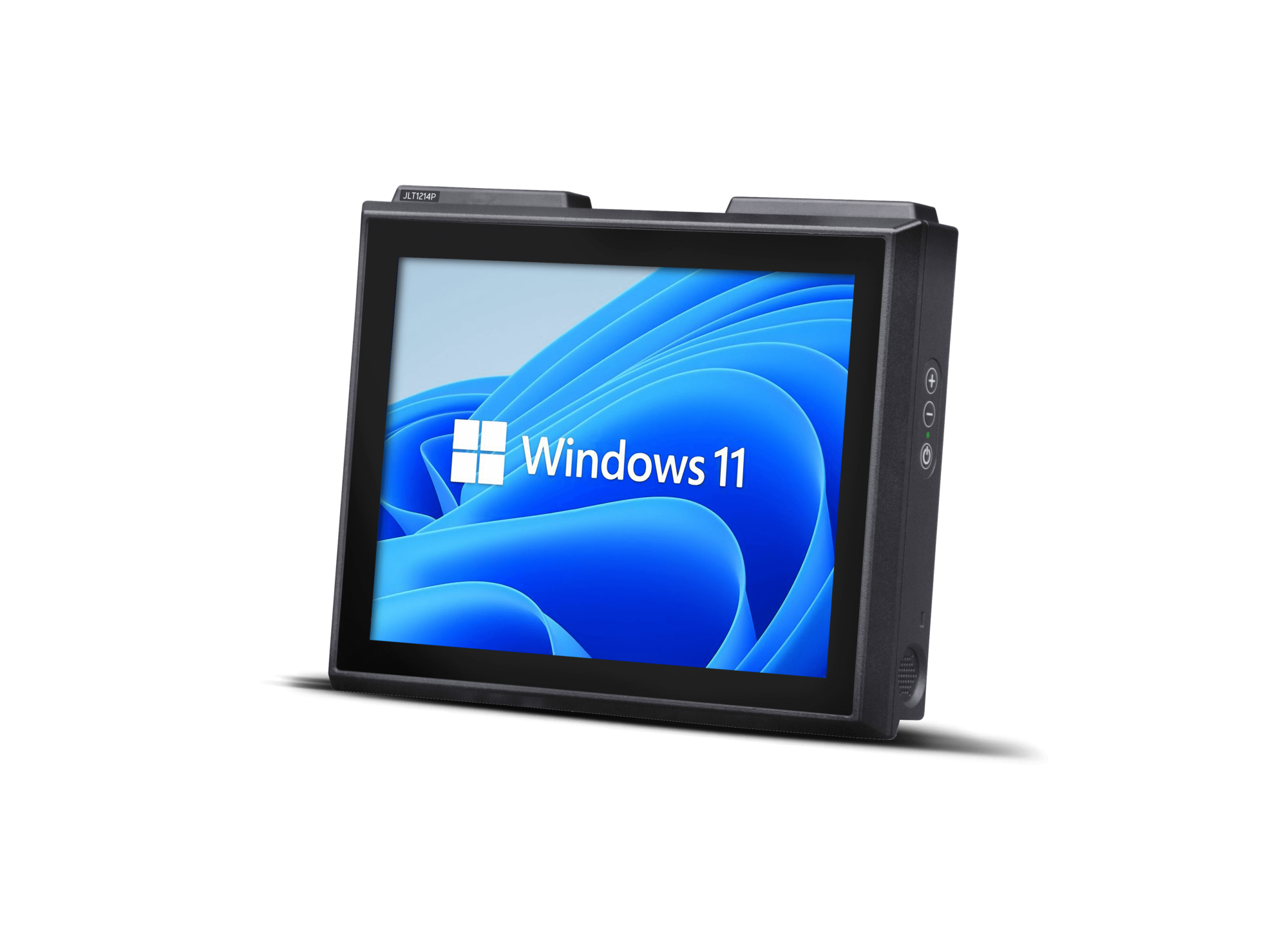

VERSO for Ports rugged vehicle-mount computer

  • Windows10 or Windows 11 IoT Enterprise LTSC with security updates until 2034
  • 12” XGA LED display with the smallest footprint in its class
  • Intel Atom® x6413E Quad Core processor
  • IP65 dustproof and withstands low-pressure water jets from
    all directions
  • Virtually unbreakable JLT PowerTouch™ display
  • Dual-diversity PIFA WLAN antennas
  • Integrated DC/DC with UPS battery solution
  • Designed according to military standard MIL-STD 810G



USE Cases

  • Ship to Shore Cranes (STS)
  • 12” XGA LED display with the smallest footprint in its class
  • Intel® x6413E Quad Core processor
  • IP65 dustproof and withstands low-pressure water jets from
    all directions
  •  Virtually unbreakable JLT PowerTouch™ display
  • Dual-diversity PIFA WLAN antennas
  •  Integrated DC/DC with UPS battery solution
  • Designed according to military standard MIL-STD 810
  • Windows10 or Windows 11 IoT Enterprise LTSC with security updates until 2034
  • 12” XGA LED display with the smallest footprint in its class
  • Intel Atom® x6413E Quad Core processor
  • IP65 dustproof and withstands low-pressure water jets from
    all directions
  • Virtually unbreakable JLT PowerTouch™ display
  • Dual-diversity PIFA WLAN antennas
  • Integrated DC/DC with UPS battery solution
  • Designed according to military standard MIL-STD 810G



USE Cases

  • Ship to Shore Cranes (STS)
  • 12” XGA LED display with the smallest footprint in its class
  • Intel® x6413E Quad Core processor
  • IP65 dustproof and withstands low-pressure water jets from
    all directions
  •  Virtually unbreakable JLT PowerTouch™ display
  • Dual-diversity PIFA WLAN antennas
  •  Integrated DC/DC with UPS battery solution
  • Designed according to military standard MIL-STD 810

The optimal container terminal computer that delivers.

From gate to stack and crane to cab, the VERSO for Ports is purpose-built to handle tough container terminal operations. Engineered to withstand salt, sand, or harsh weather, constant vibration, and round-the-clock shifts, it provides reliable performance across the terminal. It is designed to keep terminal operations moving – boosting capacity, productivity, and container throughput.

Tough build and rugged durability you can count on

With an ultra-durable aluminum chassis, minimal cabling, and board-to-board connectors, the VERSO for Ports is tested to withstand shock and
vibration and as well as extreme temperatures. Its IP65 rating ensures full dust protection and resistance to water jets.

The virtually unbreakable JLT PowerTouch™ display features a grid of nearly invisible wires and hardened glass for superior resilience
to wear and tear. A dock-free design eliminates fragile connections

Fast. Reliable. Always connected. Protected to last

In busy terminals, the VERSO 1214 ensures low-latency, high-reliability data for container throughput with advanced Wi-Fi, 4G LTE, and GPS/GLONASS for real-time communications and precise container positioning. Built-in high-sensitivity planar Inverted-F Antenna (PIFA) keep WiFi connections stable even over long distances and obstructed and congested areas. JLT rugged vehicle-mount computers are designed for long-term performance, and some units have operated
for over 15 years. With in-house development and tech-forward engineering, the VERSO for Ports is future-ready and upgradeable delivering
exceptional value from day one



Product Highlight

Dock-free, ruggedized design

The one-piece non-docking solution withstands shocks, vibrations, and harsh weather conditions and remains reliable and secure in container terminal environments.

Reliable connectivity and data transfer

Equipped with the latest connectivity technology and highly sensitive antennas, it delivers ultra-reliable, low-latency connectivity and real-time performance in busy, crowded container terminals.

Protected investment

Rugged from the inside out to endure, the VERSO for Ports delivers long-term value with reliable performance, upgradeable technology, and proven durability in the harshest environments.

Product Specifications

Base Unit

Processor: Intel® x6413E

Memory: 8GB DDR4 (max 32GB)

Display: 12.1” XGA LED 1000 NIT
12.1” XGA LED 500 NIT
Capacitive touch screen with JLT PowerTouch™ technology and hardened glass

Storage

SATA:

CFast 60GB, 120GB, 240GB

RF Options

BLUETOOTH: v5.2

GNSS: A-GPS/GLONASS/BEIDOU (optional)

WLAN: Dualband WLAN 802.11ax, 802.11a/b/g/n/ac, MU-MIMO supported

WWAN: 4G (LTE) up to 100 Mbps download speed (optional)

ANTENNAS: User configurable external or internal WLAN and Bluetooth antennas
WLAN dual diversity antennas (PIFA)

Interfaces

BUTTONS: LED dimming +/-
Power

PORTS: 1x Ethernet 10/100/1000
1x RS232 with 5V
4x USB 2.0

BATTERY: Internal battery for graceful shut down at unexpected power outages

Security

TPM module

Power Supply

INPUT:

9-36 VDC unisolated
18-60 VDC isolated

Operating Systems

Windows:

Windows 11 IoT Enterprise LTSC
Windows 10 IoT LTSC

Physical Characteristics

Dimensions: 305mm (w) x 240mm (h) x 59mm (d)
12 inch (w) x 9.4 inch (h) x 2.3 inch (d)

Weight: 3.5 kg / 7.7 LB

Environment

Operating temp.
-30°C to 55°C / -22°F to 131°F

STORAGE TEMPERATURE
-35°C to 75°C / -31°F to 167°F

CONNECTOR SEALING
Roxtec sealing cable protection (optional)

HUMIDITY
10–95% RH

DUST AND WATER
IP65 – IEC 60529:2001

Vibration
5–500 Hz/0,04 m/s2 XYZ – IEC 60068-2-64 Fh

Shock
30g for 11ms XYZ – IEC 60068-2-27

MIL-SPEC
810G in applicable areas

Base Unit

Processor Intel® x6413E
Memory 8GB DDR4 (max 32GB)
Display 12.1” XGA LED 1000 NIT
12.1” XGA LED 500 NIT
Capacitive touch screen with JLT PowerTouch™ technology and hardened glass

Interfaces

BUTTONS LED dimming +/-
Power
PORTS 1x Ethernet 10/100/1000
1x RS232 with 5V
4x USB 2.0
BATTERY Internal battery for graceful shut down at unexpected power outages

Storage

SATA:

CFast 60GB, 120GB, 240GB

Power Supply

INPUT:

9-36 VDC unisolated
18-60 VDC isolated

Physical Characteristics

Dimensions 305mm (w) x 240mm (h) x 59mm (d)
12 inch (w) x 9.4 inch (h) x 2.3 inch (d)
Weight 3.5 kg / 7.7 LB

RF Options

BLUETOOTH v5.2
GNSS A-GPS/GLONASS/BEIDOU (optional)
WLAN Dualband WLAN 802.11ax, 802.11a/b/g/n/ac, MU-MIMO supported
WWAN 4G (LTE) up to 100 Mbps download speed (optional)
ANTENNAS User configurable external or internal WLAN and Bluetooth antennas
WLAN dual diversity antennas (PIFA)

Security

TPM module

Operating Systems

Windows:

Windows 11 IoT Enterprise LTSC
Windows 10 IoT LTSC
