Optimize picking, put-away, and inventory management with JLT rugged handheld scanners By combining durable handhelds, ring scanners, and VMTs, your warehouse and distribution teams gain a fully integrated solution that delivers real-time visibility, improved task accuracy, and more efficient workflows. From receiving and put-away to picking and shipping, JLT rugged devices work seamlessly together to keep operations running smoothly and reliably.
Warranty – 3 year

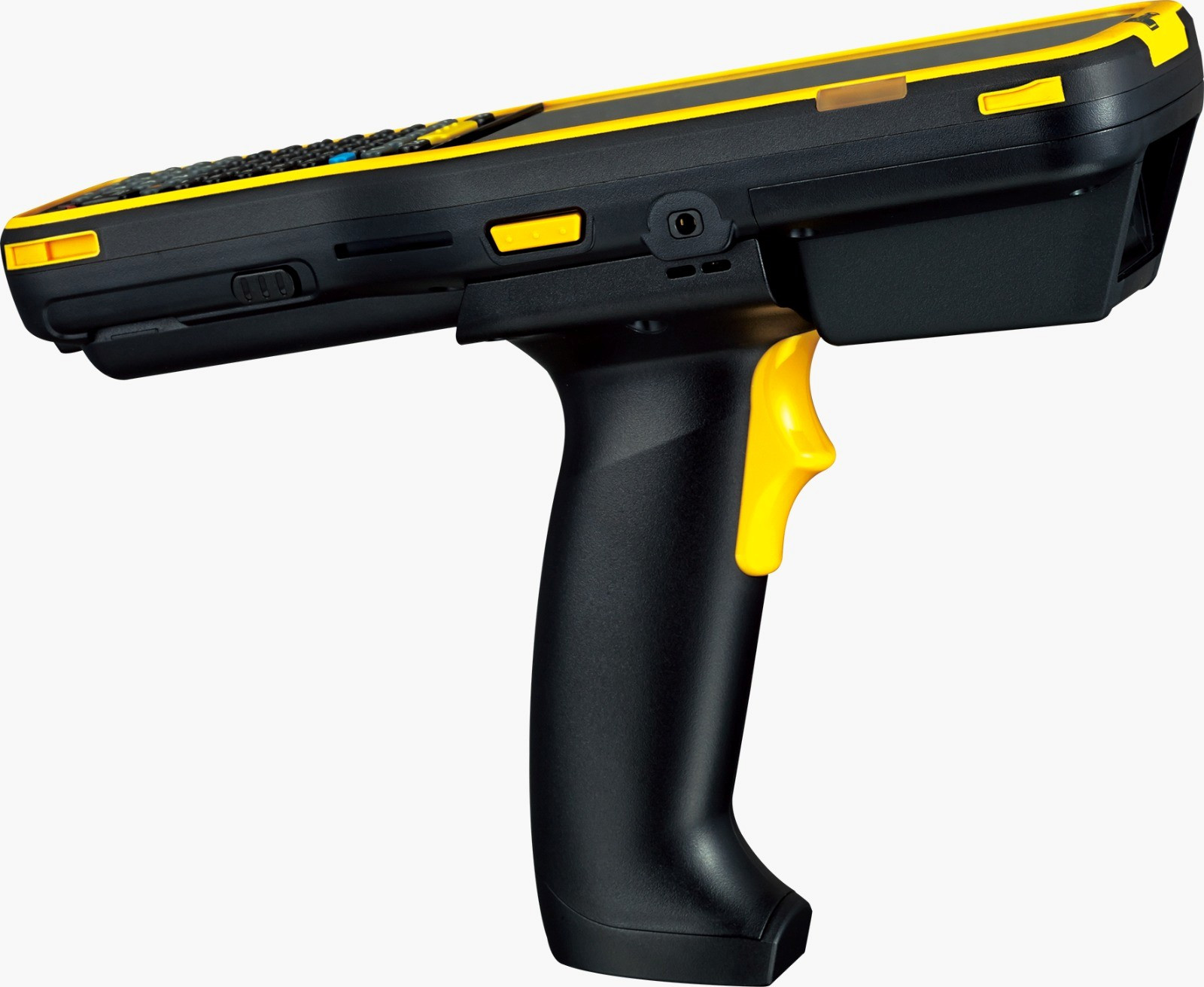

Powered by an octa-core Qualcomm® processor with ample memory, the RK96 delivers fast, reliable multitasking. It keeps warehouse workflows running smoothly, enabling real-time data processing and consistent performance across demanding applications.
With Wi-Fi 7 and Bluetooth 6.0, the RK96 ensures ultra-fast, stable connectivity. It supports uninterrupted roaming and real-time access to mission-critical systems, helping teams stay connected and productive across large warehouse environments.
A 7000 mAh battery supports full-shift operation, while the IP65-rated rugged design withstands harsh environments. Combined with ergonomic usability and integrated data capture, the RK96 minimizes downtime and maximizes efficiency on the floor.
Operating System: Android 15 (GMS and AER certified) ,Upgradable to Android 181
CPU: Qualcomm Q-6690 Octa-core, up to 2.9GHz, Edge AI enabled
Memory: 128GB FLASH / 8GB RAM
Expansion: Micro SD Slot With SDHC (up to 32 GB) and SDXC (up to 2TB) Support
Operating Power: Standard: Rechargeable Li-ion : 3.635V, 7000 mAh (25.45 Wh)
Hot swap battery backup with temporary session persistence
Working Hours2: Standard: Min. 14 working hours
Alert: LED indicatores for RF, charging status, scanning status
2 rectangle LED at sides / Haptic feedback vibration / Speaker with smart amplifier driver
Interface Supported: USB 3.1 Gen 1 Type-C / USB 2.0 with OTG
WLAN security: WEP, WPA (PSK, TKIP), WPA2 (AES, PSK), WPA-1X (TKIP,EAP-TLS, PEAP), WPA2-1X (AES, EAP-TLS, PEAP) ,802.1x (EAP-TLS, PEAP)
AES-CCMP, WPI-SMS4, WPS2.0, WAPI, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD
WLAN: IEEE 802.11 a/b/g/n/ac/ax/be/d/h/i/r/k/v/w ; Wi-Fi 7 (802.11be) , IPv4, IPv6, 2×2 MU-MIMO
Additional WLAN Features: 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise) ,dual-band simultaneous(DBS),high-band simultaneous(HBS), tri-band 2.4GHz/5GHz/6GHz Multi-Link Operation (MLO) and eMLSR 320 MHz
WPAN: Bluetooth® Class II, V6.0 dual mode, V2.1 with Enhanced Data Rate (EDR); BLE long range
Barcode Scanning: 1D /2D Imager (SE4750SR/SE4750MR; Extended-Range SE5800)
Camera: Rear: 16 megapixels PDAF with LED flash and Optical Image Stabilization (OIS) / Front : 5 megapixels
NFC: Supports ISO14443A, ISO14443B, ISO15693, Mifare, Felica (Peer-to-Peer, Card Reader, Card Emulation)
Display: 4.3” WVGA color display, Capacity Touch supports bare/wet/gloved finger and stylus inputs, Corning Gorilla Glass
E-ink Display: 1.3″ e-INK 144×200 pixel; display color: Red/Yellow/Black/White
Touch Panel: Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger
Interactive Sensor Technologyy: Light sensor, Proximity sensor, Motion sensor, E-compass, Gyroscope,Temperature sensor for Cold Storage
Keypad: 38-Key/41-Key Numeric/Function Keypads, 47-Key/53-Key Alphanumeric Keypads with LED backlight
Voice and Audio: PTT voice ; Speaker, Microphones with noise reduction and echo cancellation, Bluetooth® headset
Size (LxWxH ): 227.6 mm x 79.8 mm x 43 mm (terminal) / 227.6 mm x 79.8 mm x 167.5 mm (Gun type)
Weight: Standard:538.2 g (7000 mAh) with 2D imager
Operating temperature3: Standard: -20°C to 50°C / -4°F to 122°F
Storage Temperature: -30°C to 70°C / -22°F to 158°F
Humidity (Non-Condensed): Operating 5% to 95% / Storage 5% to 95%
Impact Resistance: IP65 / 1000 (1 m) Tumbles
Standard: 1.8 m / 2.4 m with Rubber Boot, multiple drops onto concrete (MIL-STD-810G), crossing operating temperature
Electrostatic Discharge: ± 15 kV Air Discharge, ± 8 kV Contact Discharge
Regulatory Compliance: FCC / BC / CA65 / TSCA/ NCC / BSMI / CE / WEEE / RoHS / REACH / Erp / BIS/ WPC /IC / NrCAN / RCM (the regulatory compliance for WWAN model is available on request, NRE and MOQ may apply)
CipherLab API and Android 15 Standard API
Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, A-Demo, Configuration, Ping Tool, Software Trigger key, Enterprise Settings, SIP Controller, BarcodeToSetting, Pic ‘n FillTM OCR
SOTI MobiControl, Omnissa Workspace ONE (Vmware AirWatch), Ivanti, ReMoCloud, ReMoCloud Express, EnDeCloud, StayLinked, Springdel
Snap-on Cable (USB), Pistol Grip, Rubber Boot, 4-slot Battery Charger, 5-slot Terminal Charging Cradle, 20-slot Battery Charger, Multi-slot Charging Cradle with Battery Charger, Charging and Communication Cradle, Hand Strap,Shoulder Strap, Belt Holster for Device with Pistol Grip,Pistol Grip Strap
| Operating System | Android 15 (GMS and AER certified) ,Upgradable to Android 181 | |||||||||
| CPU | Qualcomm Q-6690 Octa-core, up to 2.9GHz, Edge AI enabled | |||||||||
| Memory | 128GB FLASH / 8GB RAM | |||||||||
| Expansion | Micro SD Slot With SDHC (up to 32 GB) and SDXC (up to 2TB) Support | |||||||||
| Operating Power | Standard: Rechargeable Li-ion : 3.635V, 7000 mAh (25.45 Wh) Hot swap battery backup with temporary session persistence |
|||||||||
| Working Hours2 | Standard: Min. 14 working hours | |||||||||
| Alert | LED indicatores for RF, charging status, scanning status 2 rectangle LED at sides / Haptic feedback vibration / Speaker with smart amplifier driver |
|||||||||
| Interface Supported | USB 3.1 Gen 1 Type-C / USB 2.0 with OTG | |||||||||
| Display | 4.3” WVGA color display, Capacity Touch supports bare/wet/gloved finger and stylus inputs, Corning Gorilla Glass | |||||||||
| E-ink Display | 1.3″ e-INK 144×200 pixel; display color: Red/Yellow/Black/White | |||||||||
| Touch Panel | Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger | |||||||||
| Interactive Sensor Technologyy | Light sensor, Proximity sensor, Motion sensor, E-compass, Gyroscope,Temperature sensor for Cold Storage | |||||||||
| Keypad | 38-Key/41-Key Numeric/Function Keypads, 47-Key/53-Key Alphanumeric Keypads with LED backlight | |||||||||
| Voice and Audio | PTT voice ; Speaker, Microphones with noise reduction and echo cancellation, Bluetooth® headset | |||||||||
| Size (LxWxH ) | 227.6 mm x 79.8 mm x 43 mm (terminal) / 227.6 mm x 79.8 mm x 167.5 mm (Gun type) | |||||||||
| Weight | Standard:538.2 g (7000 mAh) with 2D imager | |||||||||
CipherLab API and Android 15 Standard API
| WLAN security | WEP, WPA (PSK, TKIP), WPA2 (AES, PSK), WPA-1X (TKIP,EAP-TLS, PEAP), WPA2-1X (AES, EAP-TLS, PEAP) ,802.1x (EAP-TLS, PEAP) AES-CCMP, WPI-SMS4, WPS2.0, WAPI, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD |
|||||||||
| WLAN | IEEE 802.11 a/b/g/n/ac/ax/be/d/h/i/r/k/v/w ; Wi-Fi 7 (802.11be) , IPv4, IPv6, 2×2 MU-MIMO | |||||||||
| Additional WLAN Features | 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise) ,dual-band simultaneous(DBS),high-band simultaneous(HBS), tri-band 2.4GHz/5GHz/6GHz Multi-Link Operation (MLO) and eMLSR 320 MHz | |||||||||
| WPAN | Bluetooth® Class II, V6.0 dual mode, V2.1 with Enhanced Data Rate (EDR); BLE long range | |||||||||
Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, A-Demo, Configuration, Ping Tool, Software Trigger key, Enterprise Settings, SIP Controller, BarcodeToSetting, Pic ‘n FillTM OCR
Snap-on Cable (USB), Pistol Grip, Rubber Boot, 4-slot Battery Charger, 5-slot Terminal Charging Cradle, 20-slot Battery Charger, Multi-slot Charging Cradle with Battery Charger, Charging and Communication Cradle, Hand Strap,Shoulder Strap, Belt Holster for Device with Pistol Grip,Pistol Grip Strap
| Barcode Scanning | 1D /2D Imager (SE4750SR/SE4750MR; Extended-Range SE5800) | |||||||||
| Camera | Rear: 16 megapixels PDAF with LED flash and Optical Image Stabilization (OIS) / Front : 5 megapixels | |||||||||
| NFC | Supports ISO14443A, ISO14443B, ISO15693, Mifare, Felica (Peer-to-Peer, Card Reader, Card Emulation) | |||||||||
| Operating temperature3 | Standard: -20°C to 50°C / -4°F to 122°F | |||||||||
| Storage Temperature | -30°C to 70°C / -22°F to 158°F | |||||||||
| Humidity (Non-Condensed) | Operating 5% to 95% / Storage 5% to 95% | |||||||||
| Impact Resistance | IP65 / 1000 (1 m) Tumbles Standard: 1.8 m / 2.4 m with Rubber Boot, multiple drops onto concrete (MIL-STD-810G), crossing operating temperature |
|||||||||
| Electrostatic Discharge | ± 15 kV Air Discharge, ± 8 kV Contact Discharge | |||||||||
| Regulatory Compliance | FCC / BC / CA65 / TSCA/ NCC / BSMI / CE / WEEE / RoHS / REACH / Erp / BIS/ WPC /IC / NrCAN / RCM (the regulatory compliance for WWAN model is available on request, NRE and MOQ may apply) | |||||||||
SOTI MobiControl, Omnissa Workspace ONE (Vmware AirWatch), Ivanti, ReMoCloud, ReMoCloud Express, EnDeCloud, StayLinked, Springdel
