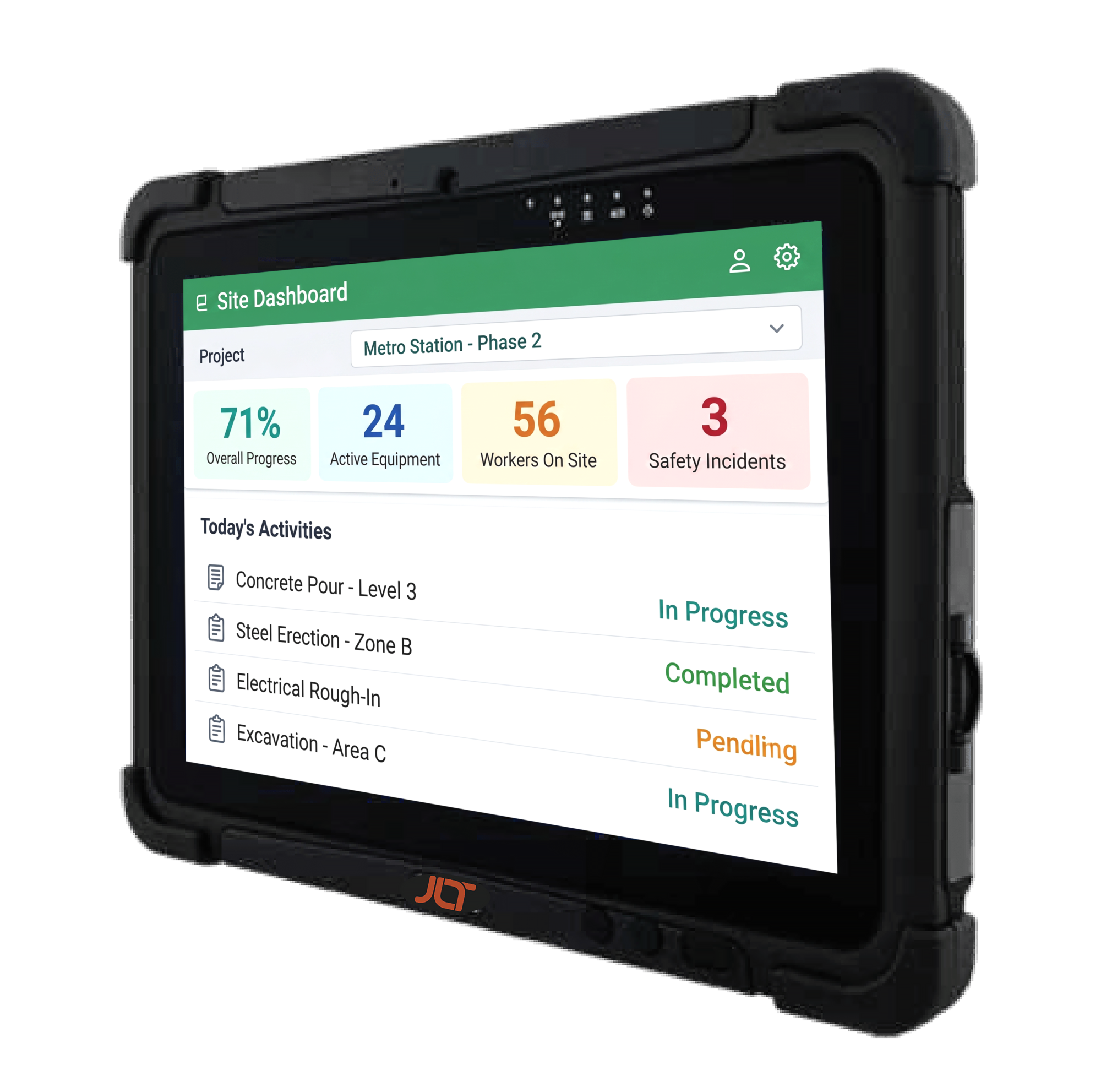

MT7010A 10.1″ fully rugged Android tablet

  • 10.1” 1920×1200 LED panel with PCAP touch
  • Android 13.0
  • Qualcomm® 6490, Octa-Core, up to 2.7GHz
  • Support Wi-Fi 6E
  • Optional WWAN 4G and 5G
  • MIL-STD-810H shock / Drop / Vibration compliant
  • Optional barcode reader and NFC reader
  • 10.1” 1920×1200 LED panel with PCAP touch
  • Android 13.0
  • Qualcomm® 6490, Octa-Core, up to 2.7GHz
  • Support Wi-Fi 6E
  • Optional WWAN 4G and 5G
  • MIL-STD-810H shock / Drop / Vibration compliant
  • Optional barcode reader and NFC reader
Request a quote

MT7010A series rugged tablet delivers robust performance, versatility, and durability for demanding environments.
It has a 10.1” display that is easy to read in sunlight. The screen uses antiglare technology and direct optical bonding. It works with Windows or Android for smooth compatibility.

The MT7010A series is built to resist water and dust with an IP65 rating. It meets MIL-STD-810H standards and has hotswappable battery options. This design ensures it works well in tough conditions. It is perfect for fieldwork, industrial tasks, and data collection.

Product Highlight

Extended functionality

Get more out of your device with the right accessories

Maximized uptime

Total peace of mind with JLT:Care, the no-questions-asked service agreement from JLT

Perfect for work outside of the vehicle

The slim and compact format makes this tablet the perfect choice for remote work

Product Specifications

Base Unit

Processor: Qualcomm® 6490, Octa-Core, up to 2.7GHz

Memory: 8GB

Display: 10.1″ (1920×1200) 800 NIT
Optical bonding for sunlight viewability
Projected capacitive multi touch
Anti-glare touch treatment
Support hand / gloves and rain mode

CERTIFICATION: CE, FCC

Storage

128GB

RF Options

Radio: WLAN support
Bluetooth support

WWAN: 4G (optional)
5G (optional)

GNSS: GPS/GLONASS

RFID: NFC (read/write, peer to peer mode) (optional)

Interfaces

Ports: 1 x USB 3.0 Type-C OTG (Type-C support power delivery)
1 x USB 2.0 Type-A
1 x Micro SD card slot
1 x SIM card slot

Audio: 1 x Audio combo connector (Mic in or Line out)
1 x Built-in mic
2 x Speaker

Camera: Front: 8MP camera
Rear: 16MP camera with LED auxiliary light (auto focus)

Data capture: 1D/2D barcode reader (optional)

Keys: 1 x Volume +/-, 1 x Home button, 1 x Return button,
1 x Power button, 1 x Function button

LED indicator: 1 x LED indicators (power, battery)

Connector: 1 x Docking connector

Security

SOTI MobiControl: SOTI MobiControl compliance

Kensington Lock: Kensington lock support

Sensors

Ambient light sensor
E-compass
Gyro
Acceleration sensors

Power Supply

Battery: 7.7V, typ. 5900 mAh Li Polymer battery (2S1P)
7.4V, typ. 10280 mAh Li Polymer battery (2S2P) (optional)
Warm swappable function (optional)

Operating time: Standard battery: 8 hours

Power rating: 19V

Adapter: 19V 3.42A Adapter

Operating Systems

Android:

13.0

Physical Characteristics

Dimension: 271.9 x 197.3 x 19.5 mm

Weight: 1.2 kg (2.65 lbs) with standard battery,
1.4 kg (3.1 lbs) with optional high capacity battery

Cooling System: Fanless design

Environment

Operating humidity:

10% to 90% RH, non-condensing

Operating temp.:

-20°C to 60°C

Storage temp.:

-30°C to 70°C

Shock:

MIL-STD-810H Method 516.8 Procedure I

Vibration:

MIL-STD-810H Method 514.8 Procedure I

Dust and water:

IP65

Drop:

MIL-STD-810H Method 516.8, 4 ft

Base Unit

Processor Qualcomm® 6490, Octa-Core, up to 2.7GHz
Memory 8GB
Display 10.1″ (1920×1200) 800 NIT
Optical bonding for sunlight viewability
Projected capacitive multi touch
Anti-glare touch treatment
Support hand / gloves and rain mode
CERTIFICATION CE, FCC

Interfaces

Ports 1 x USB 3.0 Type-C OTG (Type-C support power delivery)
1 x USB 2.0 Type-A
1 x Micro SD card slot
1 x SIM card slot
Audio 1 x Audio combo connector (Mic in or Line out)
1 x Built-in mic
2 x Speaker
Camera Front: 8MP camera
Rear: 16MP camera with LED auxiliary light (auto focus)
Data capture 1D/2D barcode reader (optional)
Keys 1 x Volume +/-, 1 x Home button, 1 x Return button,
1 x Power button, 1 x Function button
LED indicator 1 x LED indicators (power, battery)
Connector 1 x Docking connector

Sensors

Ambient light sensor
E-compass
Gyro
Acceleration sensors

Storage

128GB

Power Supply

Battery 7.7V, typ. 5900 mAh Li Polymer battery (2S1P)
7.4V, typ. 10280 mAh Li Polymer battery (2S2P) (optional)
Warm swappable function (optional)
Operating time Standard battery: 8 hours
Power rating 19V
Adapter 19V 3.42A Adapter

Physical Characteristics

Dimension 271.9 x 197.3 x 19.5 mm
Weight 1.2 kg (2.65 lbs) with standard battery,
1.4 kg (3.1 lbs) with optional high capacity battery
Cooling System Fanless design

RF Options

Radio WLAN support
Bluetooth support
WWAN 4G (optional)
5G (optional)
GNSS GPS/GLONASS
RFID NFC (read/write, peer to peer mode) (optional)

Security

SOTI MobiControl SOTI MobiControl compliance
Kensington Lock Kensington lock support

Operating Systems

Android:

13.0

Downloads

PDF

JLT - MT7010A Product Sheet

Download Data Sheet

JLT - MT7010A Product Sheet

Download Data Sheet
Download Data Sheet
Download Data Sheet
Download Data Sheet
