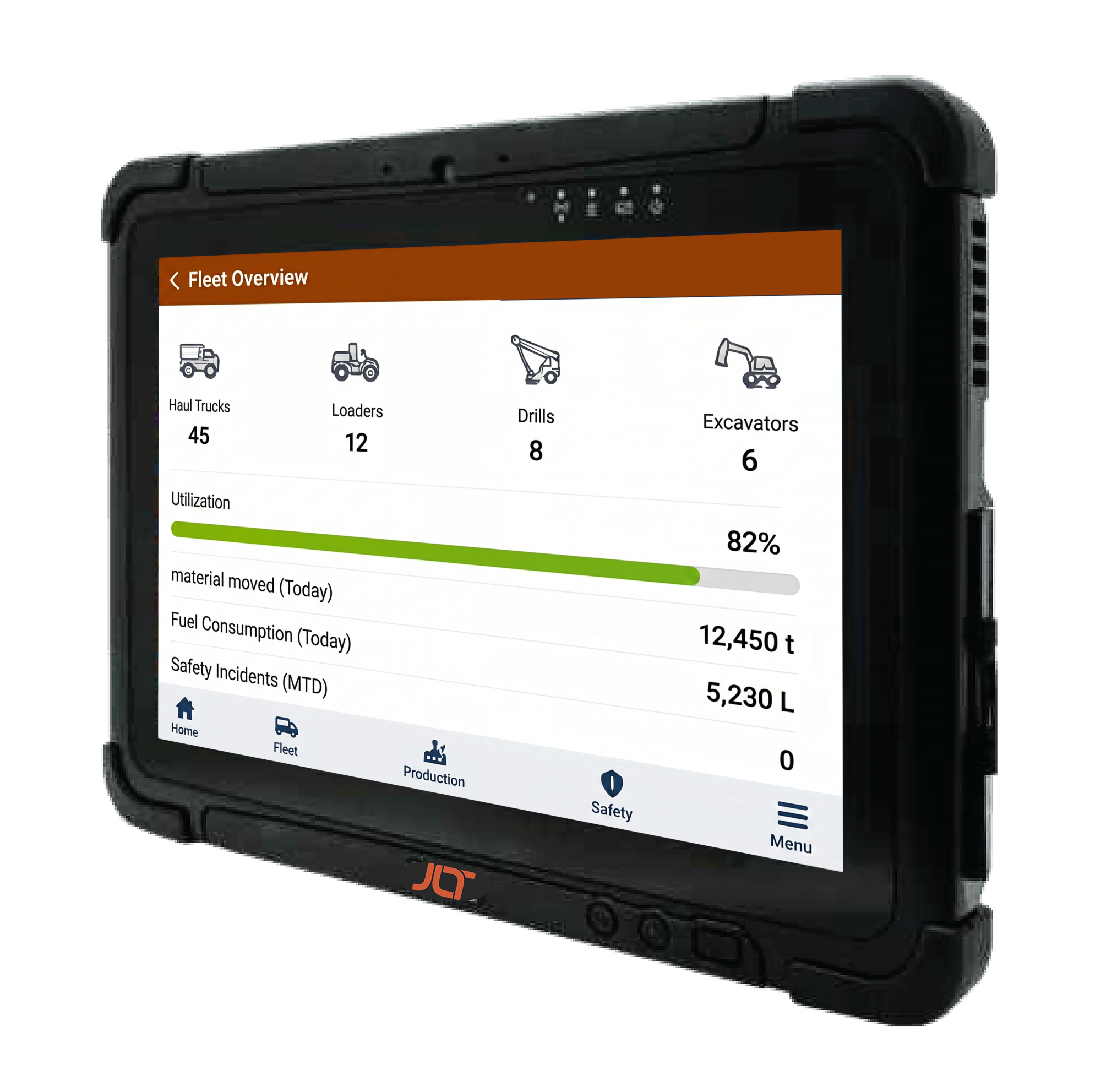

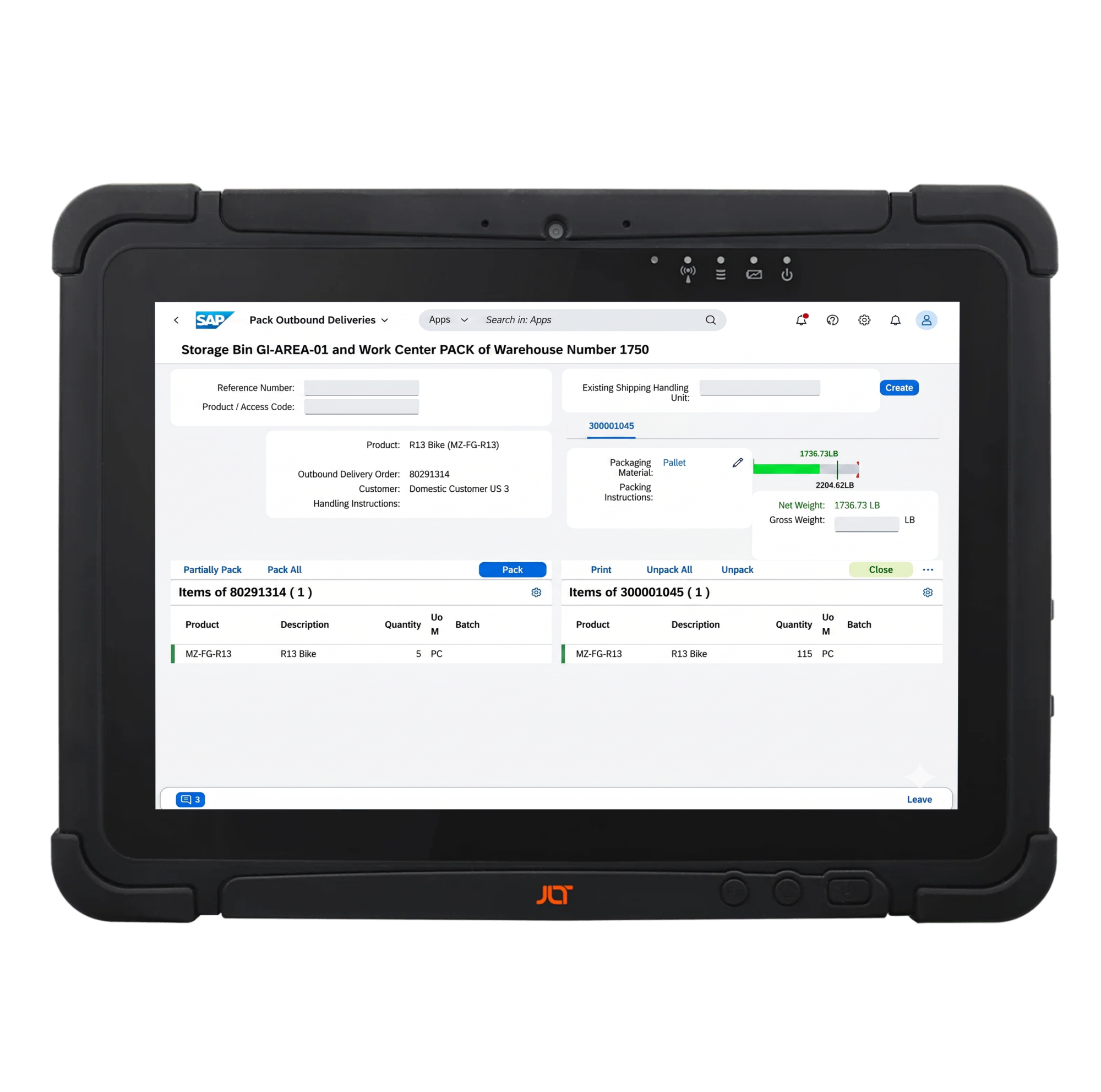

MT series fully rugged Windows tablets

  • Windows operating system
  • 10.1” display with optical bonding for sunlight viewability
  • High-speed Intel® Core i5 Kaby Lake processor on MT2010S
  • IP65 waterproof and dustproof
  • Hot-swappable battery design
  • Fully rugged construction
  • Withstands a four-foot drop onto concrete
  • So light and thin you can use it anywhere
  • Windows operating system
  • 10.1” display with optical bonding for sunlight viewability
  • High-speed Intel® Core i5 Kaby Lake processor on MT2010S
  • IP65 waterproof and dustproof
  • Hot-swappable battery design
  • Fully rugged construction
  • Withstands a four-foot drop onto concrete
  • So light and thin you can use it anywhere

Are you tired of dealing with repair costs and downtime caused by ever-failing, consumer-grade tablets? Consider going rugged! Our extra durable tablets can withstand a four-foot drop onto concrete. They are dust-proof and water-resistant to IP65 standard and have an operating temperature range of -20 to +50°C / -4 to +122°F.

With their slim form factor and easy-to-read screen, these rugged tablets are perfect for both indoor and outdoor operations. No matter the lighting or weather conditions, your team can be ready for audits, special orders, inventory, or other on-the-go logistics tasks.

The MT™ series of rugged tablets can be customized to your specific requirements, boost your workforce and increase productivity. Keep your downtime to a minimum, go rugged today!

Product Highlight

Extended functionality

Get more out of your device with the right accessories to go with it

Maximized uptime

Complete peace of mind with JLT:Care™, the no-questions-asked service agreement from JLT

Perfect for work outside of the vehicle

The slim and compact format makes this fully rugged tablet series the perfect choice for remote work

Product Specifications

Base Unit

Processor:

Intel® Celeron® N2930

Memory:

8GB

Display:

10.1” (1920 x 1200) 700 NIT
Capacitive multi-touch screen with optical bonding for sunlight viewability

Storage

SATA:

mSATA 64GB, 128GB, 256GB

RF Options

Radio:

WLAN 802.11 a/b/g/n
Bluetooth v4.0+ Class I
4G (LTE) up to 100 Mbps download speed (optional)

GPS:

U-blox Neo-6Q – GPS / GLONASS

Interfaces

Ports:

1x USB 3.0
1x Micro HDMI (optional)
1x Micro SD slot
1x 30-pin combo conn. (Giga-LAN or RS232)
1x Extension port
1x Docking connector
1x Line out/mic in
1x DC jack
1x Extension port
1x Docking connector

Audio:

1x Built-in mic
2x 1W Speaker

Camera:

Rear: 5.0 MP auto focus w. LED flash
Front: 2.0 MP

Data capture:

Short range 1D/2D bar code reader (optional)

Keys:

1x Home
1x Power
2x Programmable function keys
2x Volume keys

LED indicators:

Power
Battery
HDD
RF

Security

TPM:

V1.2

Lock:

Kensington lock slot

Mobile Device Management:

SOTI Mobicontrol compatible, available upon request

Sensors

Light sensor
G sensor Gyrometer
E-compass

Power Supply

Input:

12-19 VDC

Battery:

Hot-swappable 7.4V, 5140 mAh Li-Polymer or optional 7.4V, 10280 mAh Li-Polymer
8 hours (depending on usage)

Adapter:

AC 110 ~ 240 V, 50 ~ 60 Hz / 19 VDC

Operating Systems

Windows:

Windows 10 IoT

Physical Characteristics

Dimensions:

271.8mm (w) x 197.2mm (h) x 19mm (d)
10.7 inch (w) x 7.76 inch (h) x 0.75 inch (d)

Weight:

1.2 kg, 2.7 LB

Environment

Operating temp.:

-20 to +50 °C / -4 to +122 °F (battery)

Storage temp.:

-30 to +70 °C / -22 to +158 °F

Humidity:

10-90% RH, non-condensing

Dust and water:

IP65

Vibration:

MIL-STD-810G

Shock:

MIL-STD-810G

Drop:

MIL-STD-810G (multiple 4-foot drop to concrete)

Base Unit

Processor

Intel® Celeron® N2930

Memory

8GB

Display

10.1” (1920 x 1200) 700 NIT
Capacitive multi-touch screen with optical bonding for sunlight viewability

Interfaces

Ports

1x USB 3.0
1x Micro HDMI (optional)
1x Micro SD slot
1x 30-pin combo conn. (Giga-LAN or RS232)
1x Extension port
1x Docking connector
1x Line out/mic in
1x DC jack
1x Extension port
1x Docking connector

Audio

1x Built-in mic
2x 1W Speaker

Camera

Rear: 5.0 MP auto focus w. LED flash
Front: 2.0 MP

Data capture

Short range 1D/2D bar code reader (optional)

Keys

1x Home
1x Power
2x Programmable function keys
2x Volume keys

LED indicators

Power
Battery
HDD
RF

Sensors

Light sensor
G sensor Gyrometer
E-compass

Storage

SATA:

mSATA 64GB, 128GB, 256GB

Power Supply

Input

12-19 VDC

Battery

Hot-swappable 7.4V, 5140 mAh Li-Polymer or optional 7.4V, 10280 mAh Li-Polymer
8 hours (depending on usage)

Adapter

AC 110 ~ 240 V, 50 ~ 60 Hz / 19 VDC

Physical Characteristics

Dimensions

271.8mm (w) x 197.2mm (h) x 19mm (d)
10.7 inch (w) x 7.76 inch (h) x 0.75 inch (d)

Weight

1.2 kg, 2.7 LB

RF Options

Radio

WLAN 802.11 a/b/g/n
Bluetooth v4.0+ Class I
4G (LTE) up to 100 Mbps download speed (optional)

GPS

U-blox Neo-6Q – GPS / GLONASS

Security

TPM

V1.2

Lock

Kensington lock slot

Mobile Device Management

SOTI Mobicontrol compatible, available upon request

Operating Systems

Windows:

Windows 10 IoT

Downloads

PDF

JLT_Product_Sheet_MT2010P

Download Data Sheet
PDF

JLT - MT5010AD Product Sheet

Download Data Sheet
PDF

Data Sheet JLT:Care EMEA

Download Data Sheet

JLT_Product_Sheet_MT2010P

JLT - MT5010AD Product Sheet

Data Sheet JLT:Care EMEA
